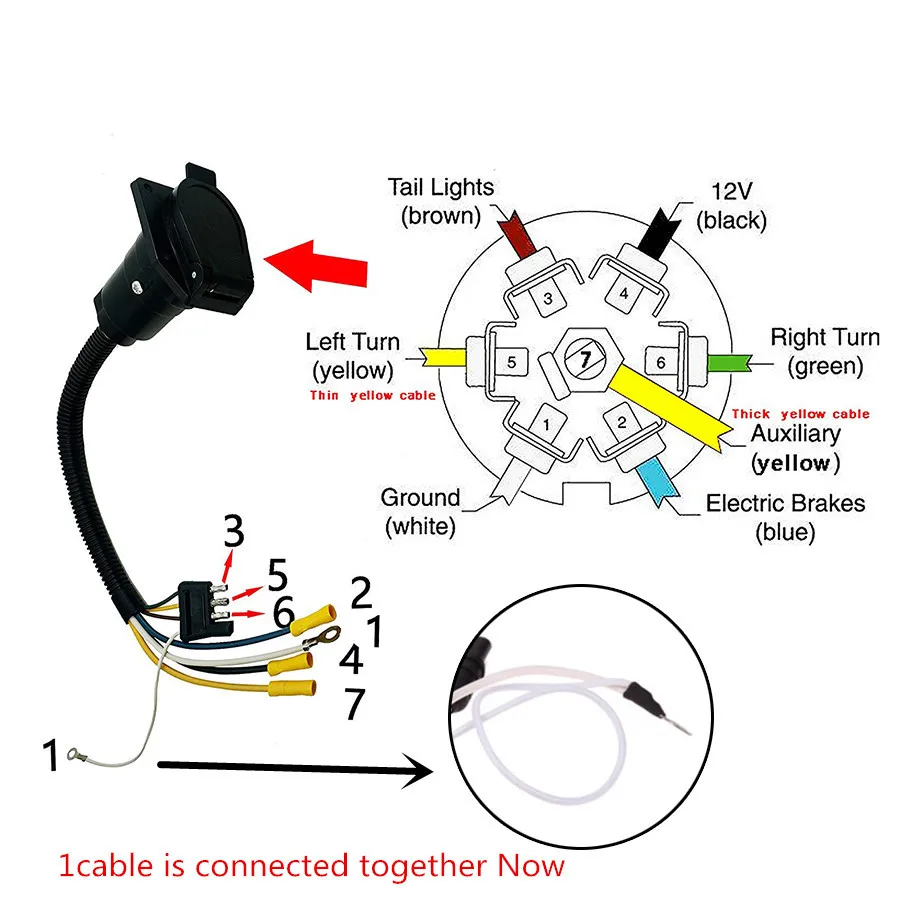

7 pin trailer plug light wiring diagram color code. 7 pin 'n' type trailer plug wiring diagram7 pin trailer wiring diagramthe 7 pin n type plug and socket is still the most common connector for towing. Trailer wiring connectors various connectors are available from four to seven pins that allow for the transfer of power for the lighting as well as auxiliary functions such as an electric trailer brake controller, backup lights, or a 12v power supply for a winch or interior trailer lights. Oct 10, 2016 at 9:48 pm #1 #1. It shows the components of the circuit as simplified shapes, and the gift and signal associates amongst the devices. 7 pin trailer plug light wiring diagram color code. This has now been replaced by 13 pin euro plugs on all new caravans. If not, the arrangement will not function as it ought to be. Wiring diagram 7 pin trailer plug toyota. If your vehicle is not equipped with a working trailer wiring harness, there are a number of different solutions to provide the perfect fit for. To properly read a electrical wiring diagram, one offers to find out how typically the components inside the method operate. For example , when a module will be powered up also it sends out a signal of half the voltage in addition to the technician will not know this, he'd. My beef with the anderson is that most people use the 50 amp plug and it is a rediculous size for the purpose and i stick with my electrical training and believe you should be able to draw 50 amps from a 50 amp socketand that sort of wiring is unnecessary for a fridgeand they provide no strain relief.
Brown pin for side markers, tail lights, and running lights. The safety and security of all individuals on or off the road, as well as those operating a mechanized lorry, depends on. Wiring diagram trailer plugs and sockets. 7 pin trailer wiring found this in less than 20 seconds, obvious you didn't try very hard. The plug for sae j560 is physically identical to the connector iso 1185.
7 Pin Installation For 98 Gmc Suburban K1500 With Factory Towing Gm Truck Club Forum from www.gmtruckclub.com Small 7 pin round (qld) identifying: The 7 pin n type plug and socket is still the most common connector for towing. 11/10 for 2011 wiring diagrams note: Brown 7 tail lights/clearance markers diagrams are from cable entry view tdr06904 part number 1 6 5 3 2 7 4 tdr06905 part number 4 7 2 3 5 6 1 7 pin round large plastic trailer socket 7 pin round large metal trailer socket 7 pin flat plastic trailer socket 7 pin flat plastic trailer plug 7 pin round large plastic trailer plug 7 pin round large. A wiring diagram usually gives suggestion very nearly the relative incline and bargain of. This supplies power to the road lighting of your trailer or caravan. For example , when a module will be powered up also it sends out a signal of half the voltage in addition to the technician will not know this, he'd. White pin to your ground.
Each component ought to be set and connected with different parts in particular manner.
Socket and plug are keyed. In the trailer wiring diagram and connector application chart below, use the first 5 pins, and ignore the rest. 7 pin 'n' type trailer plug wiring diagram7 pin trailer wiring diagramthe 7 pin n type plug and socket is still the most common connector for towing. Below is a diagram for the original plug and socket showing the functions of each pin. Oct 10, 2016 at 9:48 pm #1 #1. This supplies power to the road lighting of your trailer or caravan. Trailer wiring connectors various connectors are available from four to seven pins that allow for the transfer of power for the lighting as well as auxiliary functions such as an electric trailer brake controller, backup lights, or a 12v power supply for a winch or interior trailer lights. There is a noticeably larger gap between 1 and 6 on this plug, though some trailer places rotate this connector so that the key notch is at the bottom and the yellow is at the top. If your vehicle is not equipped with a working trailer wiring harness, there are a number of different solutions to provide the perfect fit for. Touch device users, explore by touch or with swipe gestures. The safety and security of all individuals on or off the road, as well as those operating a mechanized lorry, depends on. It shows the components of the circuit as simplified shapes, and the gift and signal associates amongst the devices. Most of us aren't electricians, but that doesn't mean wiring a trailer or replacing corroded wiring is beyond us.
7 pin trailer connector wiring diagram. The wiring diagram is normally made use of in electrical design to plan the positioning of electrical circuits. To properly read a electrical wiring diagram, one offers to find out how typically the components inside the method operate. The safety and security of all individuals on or off the road, as well as those operating a mechanized lorry, depends on. White pin to your floor.
Trailer Connector Pinout Diagrams 4 6 7 Pin Connectors from www.dieselhub.com The 7 pin n type plug and socket is still the most common connector for towing. It shows the components of the circuit as simplified shapes, and the gift and signal associates amongst the devices. Below is a diagram for the original plug and socket showing the functions of each pin. Trailer side car side wiring plug diagram. A wiring diagram is a simplified standard pictorial depiction of an electric circuit. Brown pin for side markers, tail lights, and running lights. 7 pin trailer connector wiring diagram. White pin to your floor.
Trailer wiring connectors various connectors are available from four to seven pins that allow for the transfer of power for the lighting as well as auxiliary functions such as an electric trailer brake controller, backup lights, or a 12v power supply for a winch or interior trailer lights.
In the trailer wiring diagram and connector application chart below, use the first 5 pins, and ignore the rest. Most of us aren't electricians, but that doesn't mean wiring a trailer or replacing corroded wiring is beyond us. Each component should be set and connected with other parts in specific way. Below is a diagram for the original plug and socket showing the functions of each pin. Ford 7 pin trailer connector wiring diagram from www.trailerjacks.com. Oct 10, 2016 at 9:48 pm #1 #1. This 7 pin trailer wiring diagram chevy model is far more suitable for sophisticated trailers and rvs. Brown pin for side markers, tail lights, and running lights. Small 7 pin round (qld) identifying: This has now been replaced by 13 pin euro plugs on all new caravans. This wiring diagram for 7 pin trailer plug model is far more suitable for sophisticated trailers and rvs. 7 pin 'n' type trailer plug wiring diagram7 pin trailer wiring diagramthe 7 pin n type plug and socket is still the most common connector for towing. Wiring plug diagram created date:
